12.3MP Camera Board for Nvidia Jetson Nano/Xavier NX, Raspberry Pi
Offers better picture quality and lens flexibility
No hardware modifications required
Supports NVIDIA Argus camera plugin
IR Sensitivity: Visible light
Interface: 4-lane MIPI CSI-2

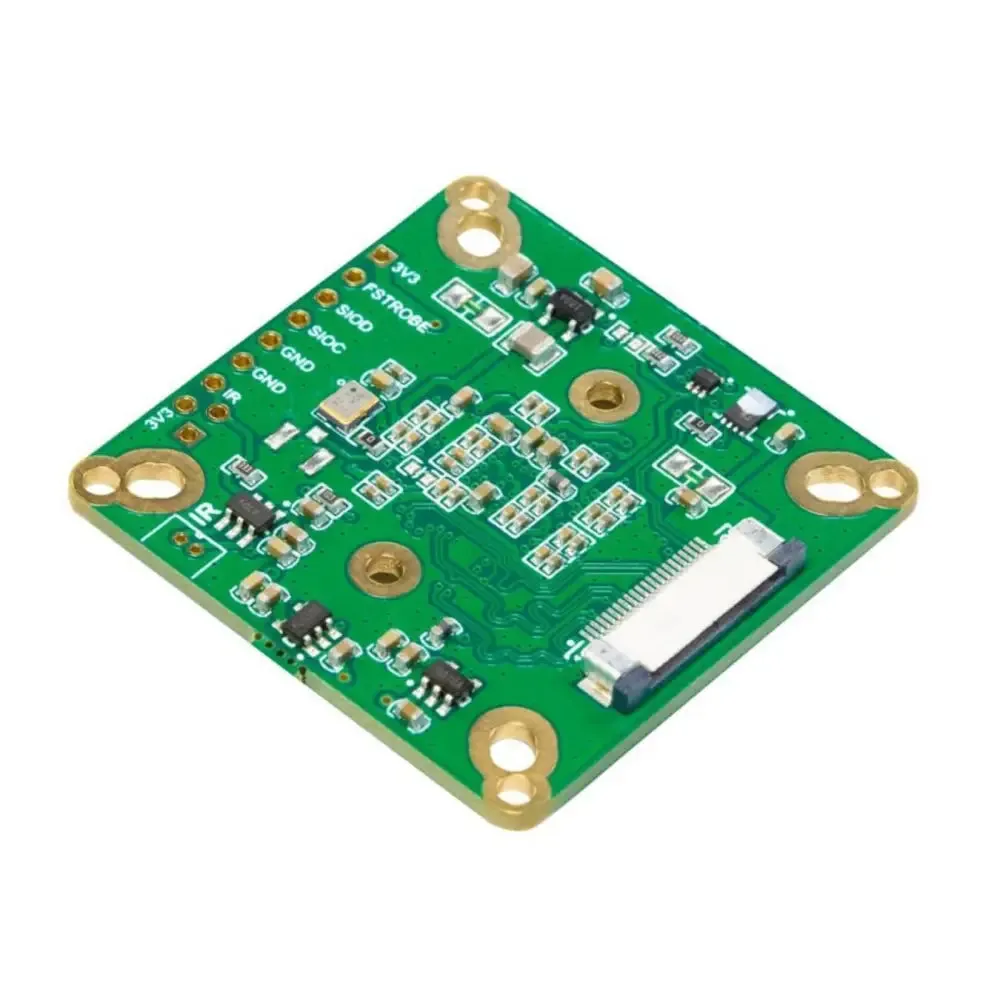

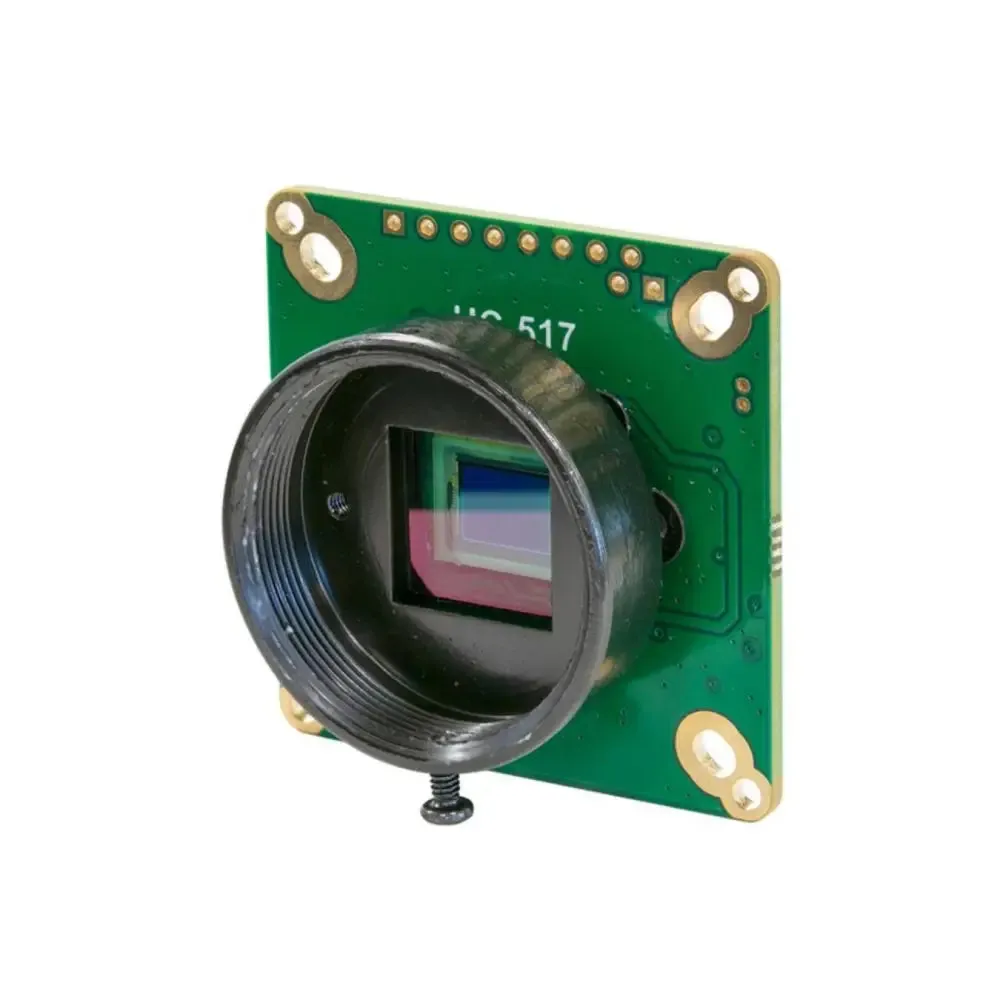

The 12.3MP Camera Board for Nvidia Jetson Nano/Xavier NX, Raspberry Pi camera module for Jetson Nano/Xavier NX, an IMX477 camera board with 3 hole pitches.

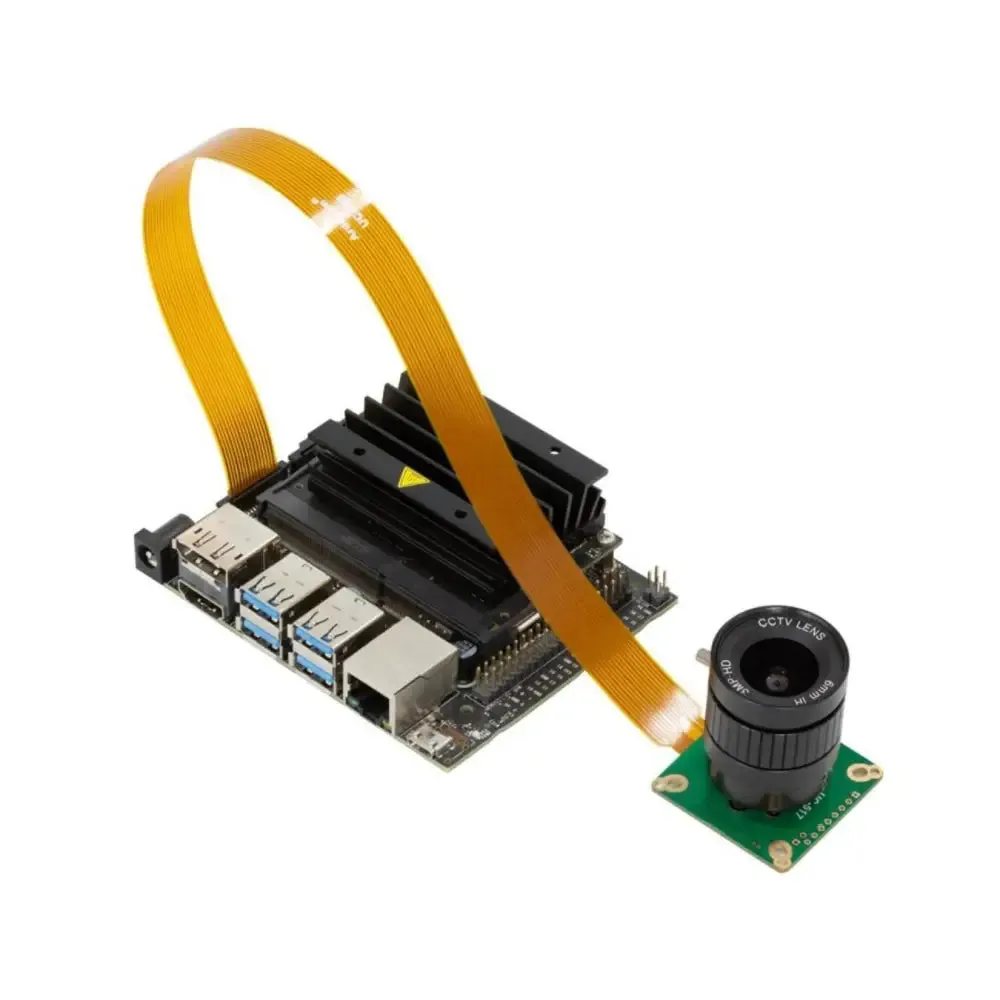

You can use this camera module on Jetson Nano/Xavier NX natively with ISP features. No hardware modifications are required, just install the driver and you are good to go.
This camera board features a Can't-Miss Update to IMX219 - Much better picture quality and lens flexibility, thanks to 53% more pixels, 92% larger pixel size, 192% larger imaging area, and a CS-Mount. It has a maximum still resolution at 4056 x 3040, frame rates: 30fps@Full 12.3MP, 60fps@1080P.
Note: C/CS Lens is not included. Pi 2/3/4/Zero won't work with it. Only the compute modules do. The camera MUST be installed. It can't work on the standard Raspberry Pi models (like Raspberry Pi 3/3B /4).

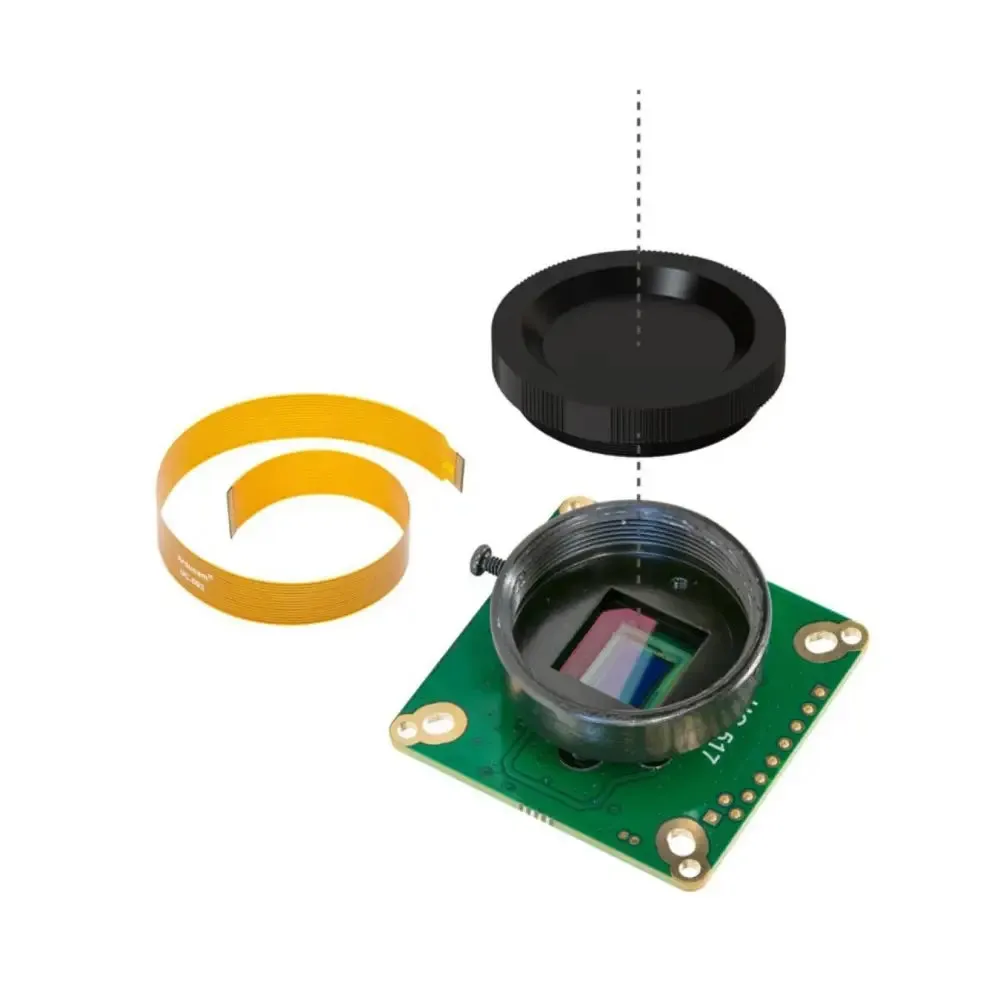

1 x 12.3 MP IMX477 Camera board with a dust cap for Jetsons
1 x 11.8" (30 cm) Camera cable
Size
Board: 38 x 38 mm
Pixel: 1.55 x 1.55 um
Hole Pitch: Compatible with 29 mm, 30 mm, 34 mm
Sensor: IMX477
Optical Format: 1/2.3″ (diagonal 7.857 mm)
Resolution: 4056 x 3040 (H x V) 12.3 MP
IR Sensitivity: Visible light
Interface: 4-lane MIPI CSI-2

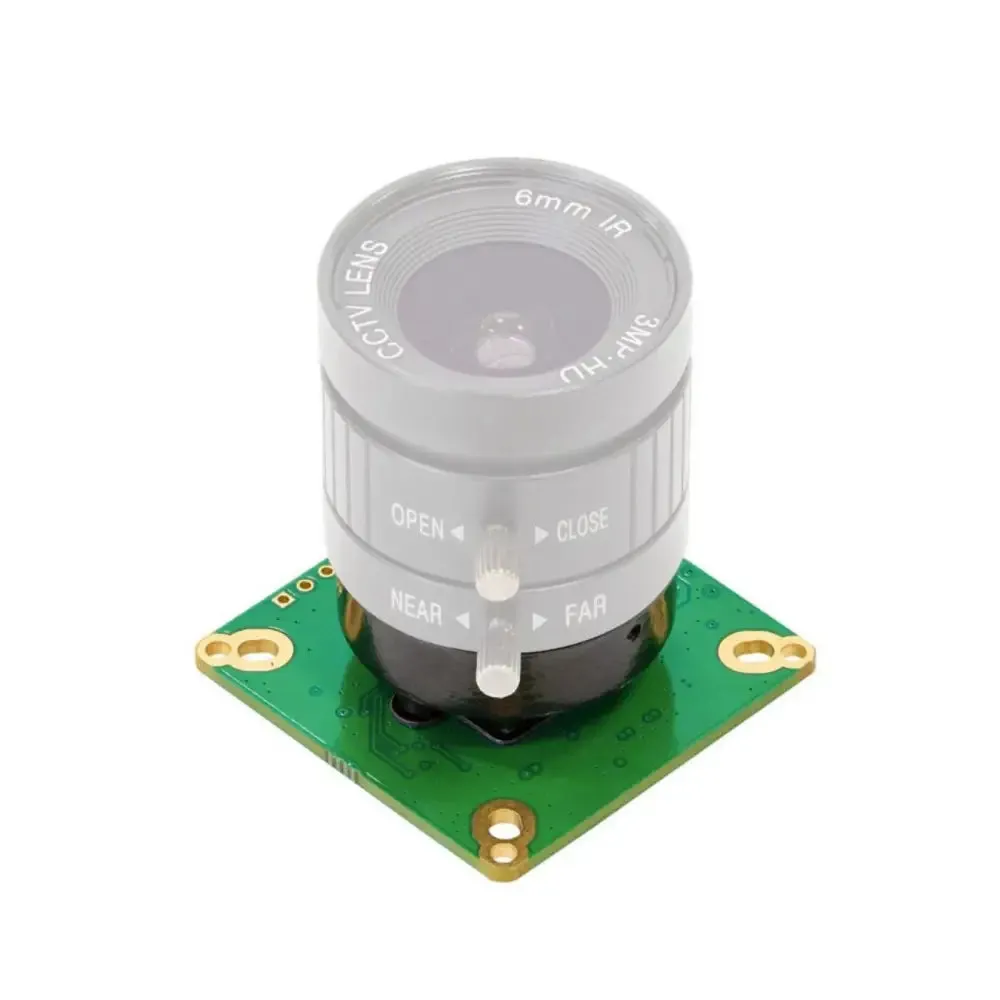

Default Lens Mount: CS-Mount
Frame Rate: 1920 x 1080 at 60 fps | 4032 x 3040 at 30 fps
